Standard Aggregate Crushing Value Device

  • 1 - 99 Pieces
    $120.00
  • >=100 Pieces
    $90.00
Usage:
Aggregate Crushing Value Device
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
OBRK
Model Number:
JSY-76
Material:
Brass
Total Weight:
5Kg/20Kg
Metal Measure size:
(Dia.xH)115x180mm
Tamping Rod:
(Dia.xL)16X600mm
Standard:
BS standard
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Dia.75mm/150mm Aggregate Crushing Value Apparatus
is carton case
Port
Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated

Standard Aggregate Crushing Value Device



Product Description



 Product Specification



Dia.75mm product parameter:
Product nameBrass Aggregate Crushing Value Apparatus
MaterialBrass
Cylinder nominal diameter75mm
Metal Measure size(Dia.xH)57x90mm
Tamping Rod(Dia.xL)8X300mm
Plunger and base plate Weight3.5KG
CylinderInternal diameter.A78±0.5mm
Internal Deep.B70mm to 85mm
Minimum wall thicks.c8mm
PlungerDiameter of piston,D76±0.5mm
Diameter of atem,E>45.0 to ≤D mm
Overall length of piston plus stem,F60mm to 80mm
Minimum depth of piston,Gno less than 19.0mm
Diameter of hole ,H10±0.1
Baseplate Minimum thickness,I10mm
Length of each side of aquare,J110mm to 115
Total weight5Kg





 Detailed Features And Design

  • The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Supplied complete with cylinder, plunger, base plate, tamping rod, and measure.




Dia.150mm product parameter:
Product nameSteel Aggregate Crushing Value Apparatus
MaterialBrass steel
Cylinder nominal diameter150mm
Metal Measure size(Dia.xH)115x180mm
Tamping Rod(Dia.xL)16X600mm
Plunger and base plate Weight16.6KG
CylinderInternal diameter.A154±0.5mm
Internal Deep.B125mm to 140mm
Minimum wall thicks.c16mm
PlungerDiameter of piston,D152±0.5mm
Diameter of atem,E>95 to ≤D mm
Overall length of piston plus stem,F100mm to 115mm
Minimum depth of piston,Gno less than 25.0mm
Diameter of hole ,H20±0.1
Baseplate Minimum thickness,I10mm
Length of each side of aquare,J200mm to 230mm
Total weight 20Kg

      crushing value 3.jpg

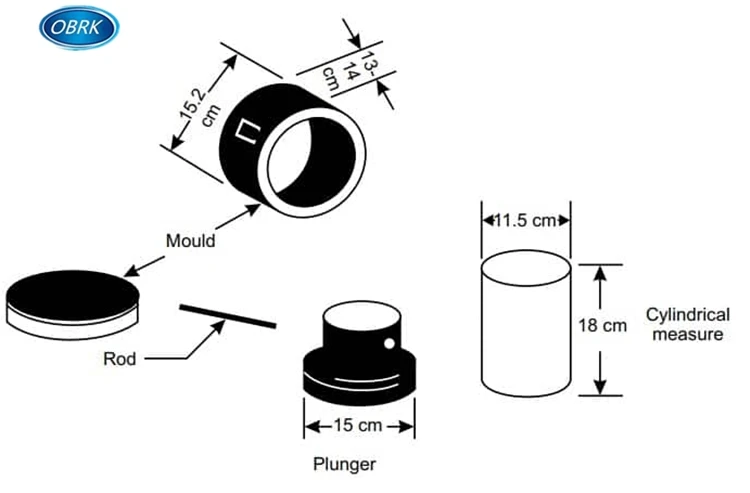

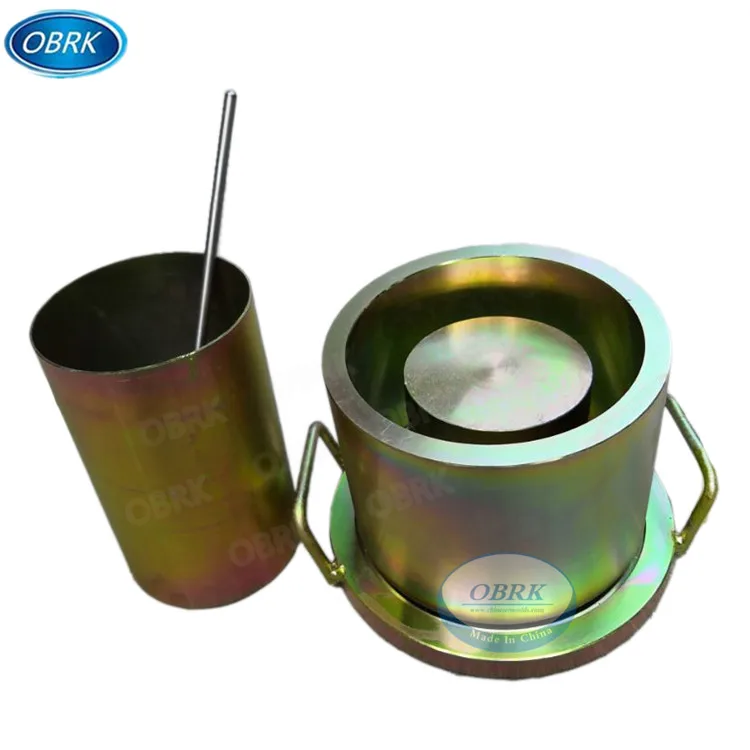

 Detail for Aggregate Crushing Value Apparatus



crushing value.jpg

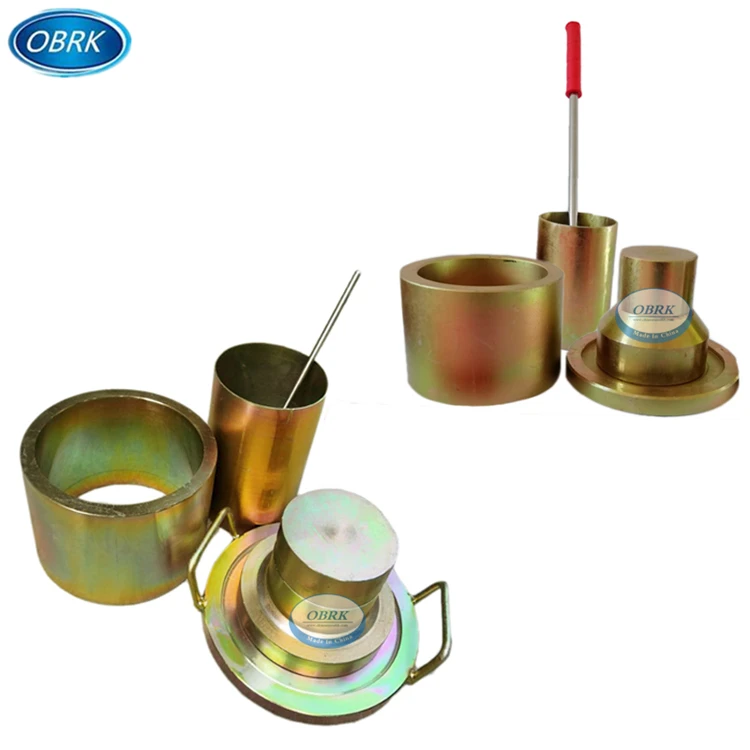

Consist of:
 Cylinder1PC
Plunger1PC
Base Plate1PC
Tamping Rod1PC
Measuring Cylinder1set
